Description

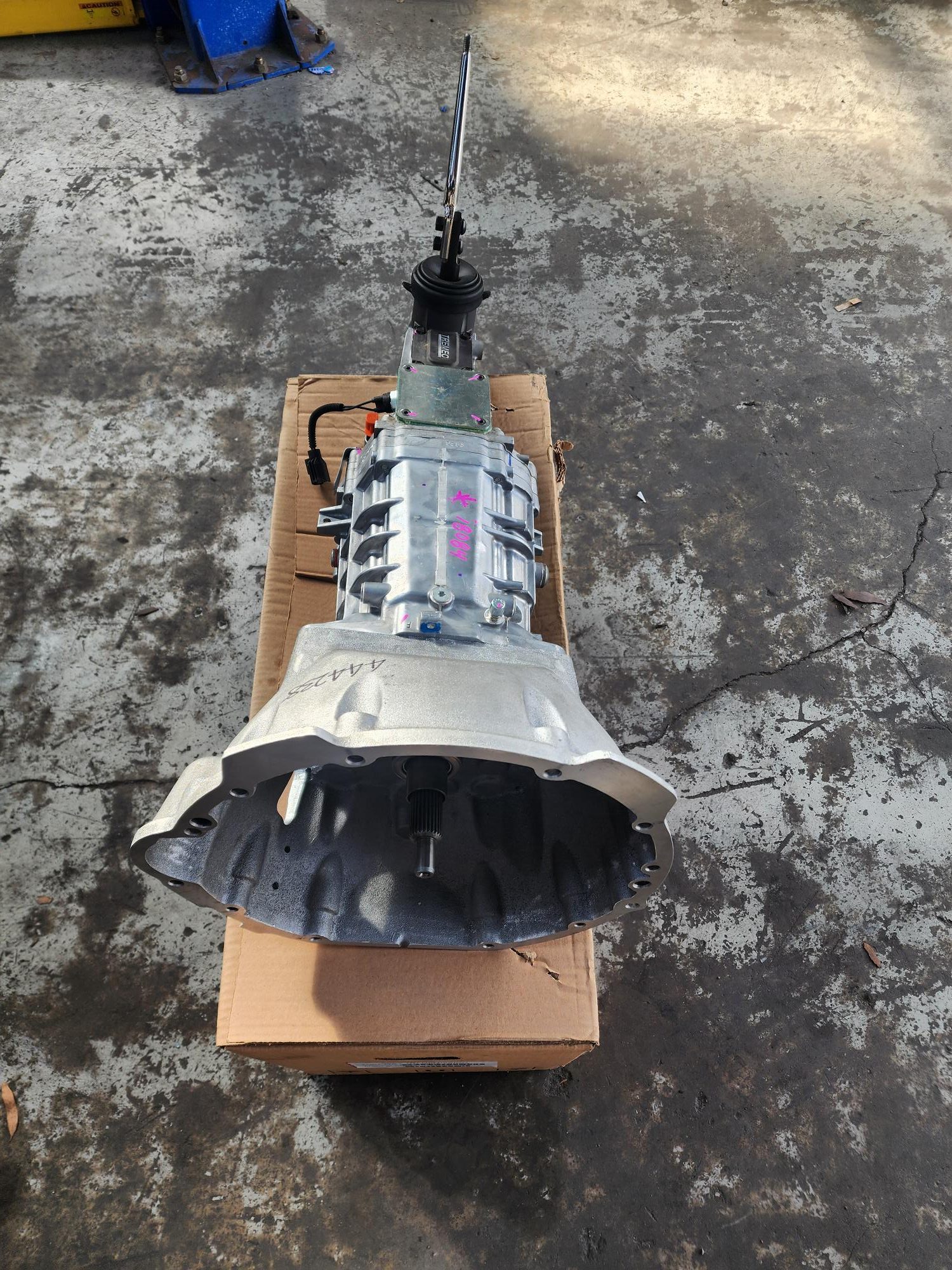

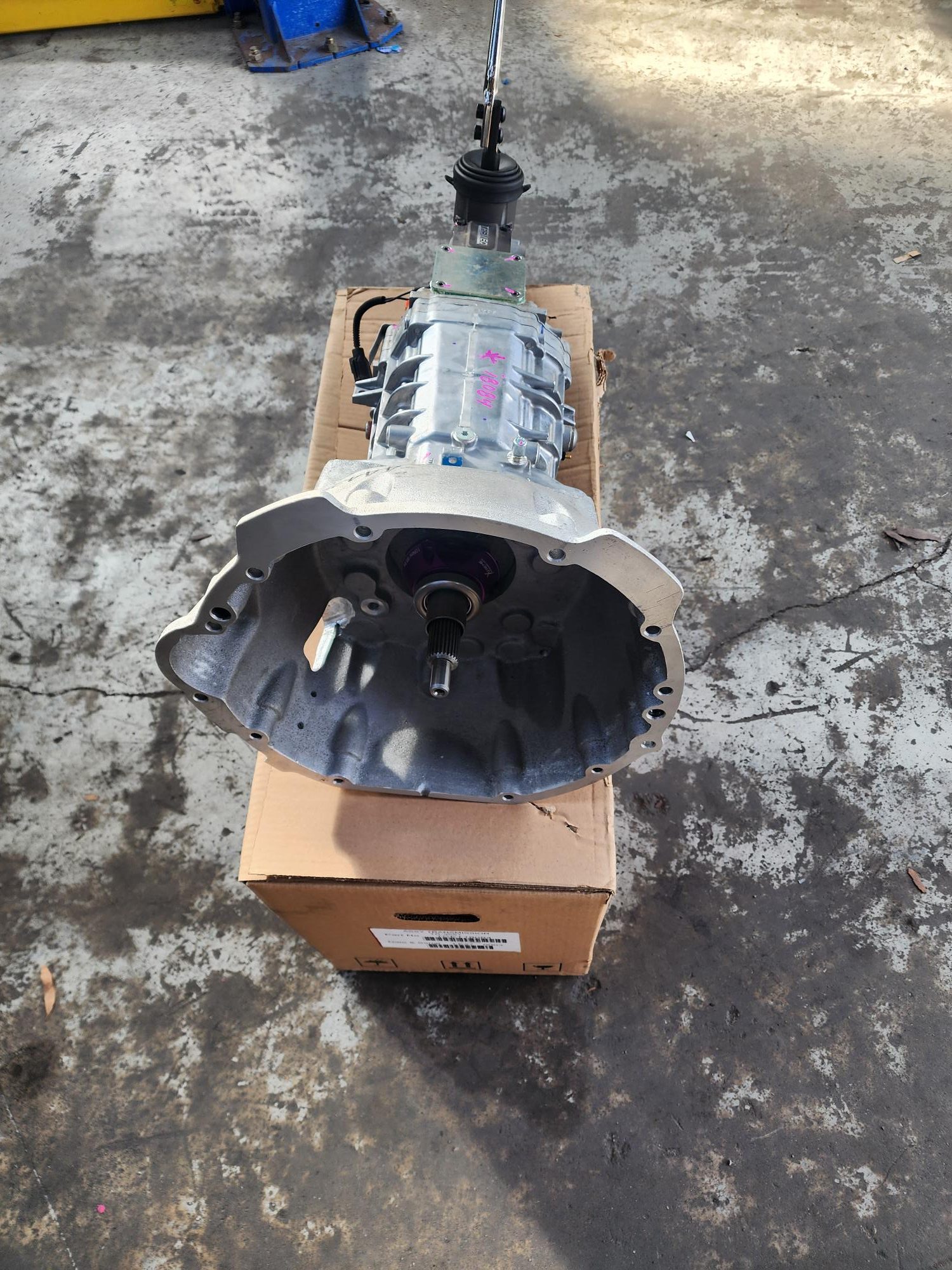

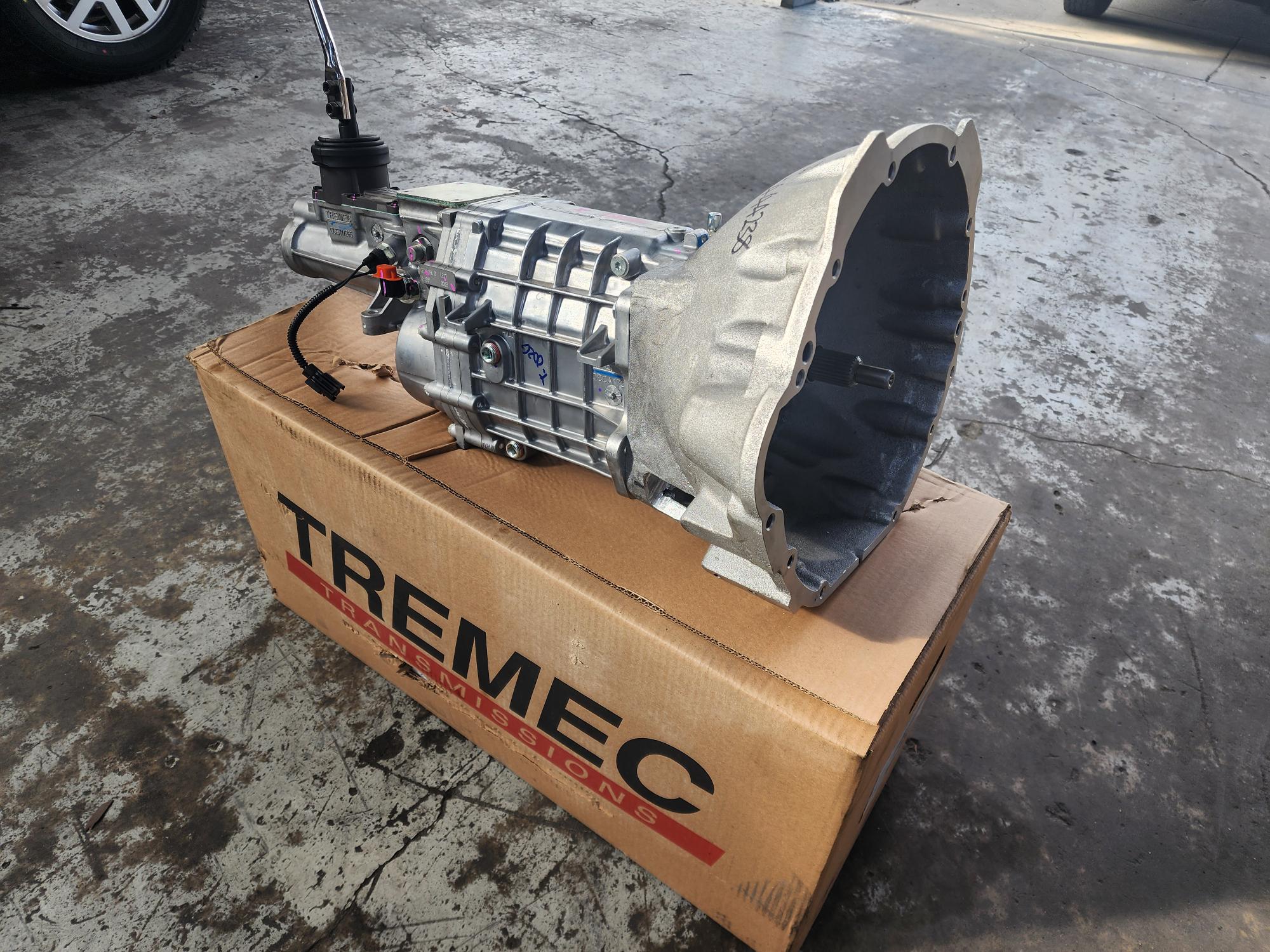

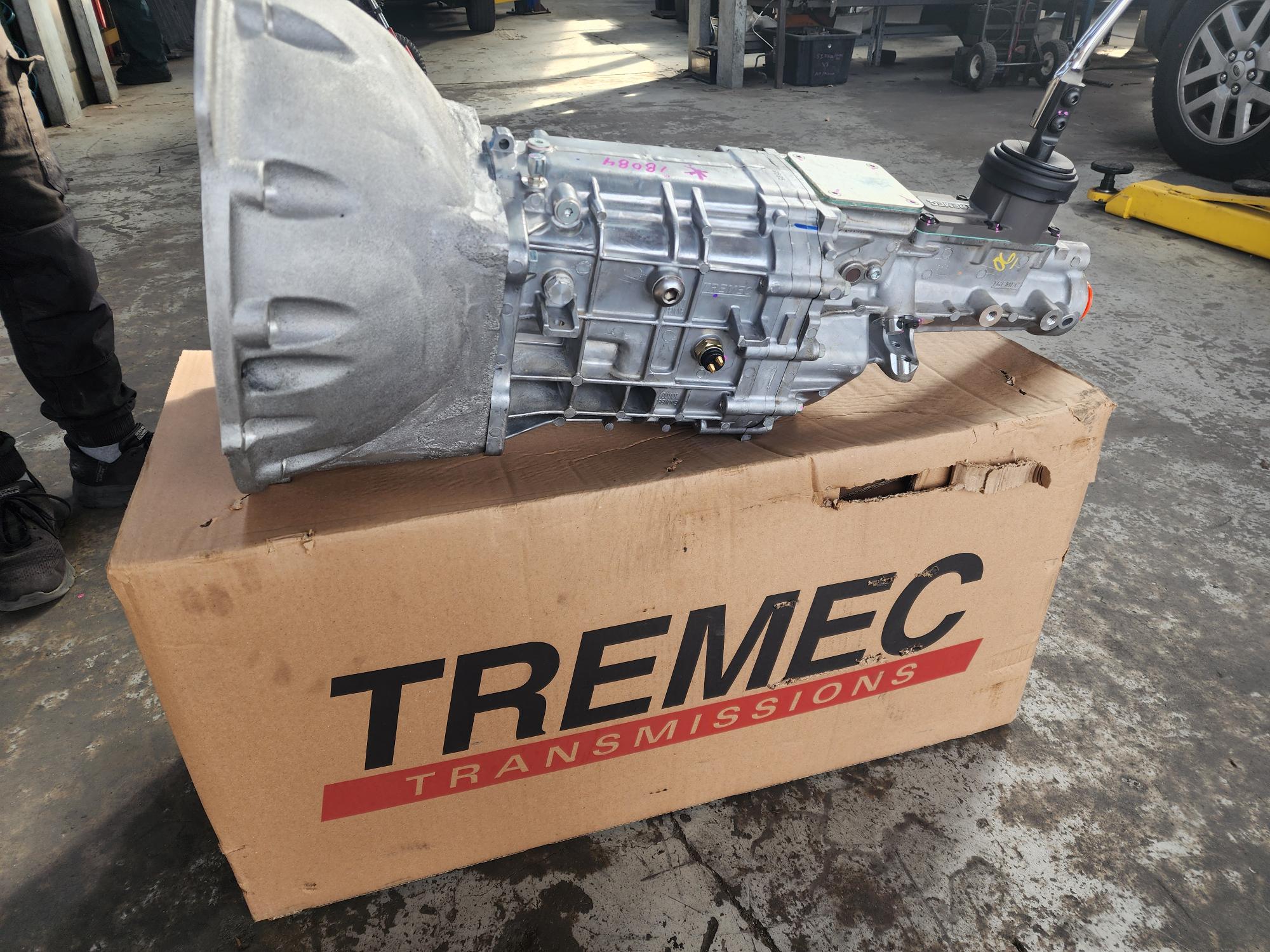

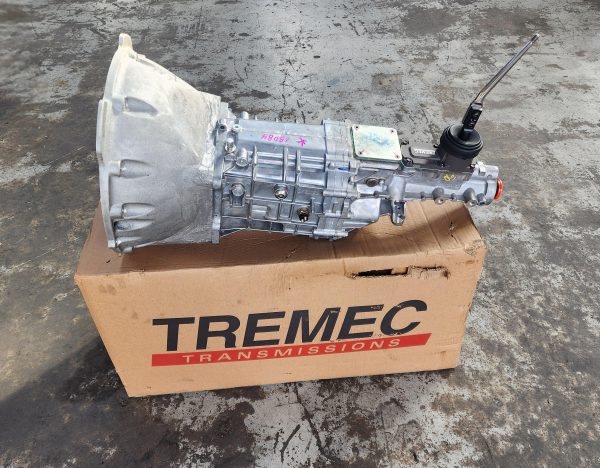

ROVER V8 / LEYLAND V8 TREMEC TKX 5 SPEED GEARBOX

TKX 5-Speed Manual Transmission Features and Benefits

• The all-new 5-speed, single overdrive manual transmission from TREMEC. Designed, tested and built specifically for the aftermarket.
• The TKX has 600 lb.-ft. of torque capacity and is capable of engines speeds of 8,000 RPMs with shifts at 7,500 RPMs. It is available in multiple gear ratio configurations.
• Designed for multiple applications with three shifter locations. Compact, end-loaded design provides clearance in most transmission tunnels without floor modifications.
• Increased case strength with three-piece aluminium housing provides outstanding structural stiffness (includes main case, intermediate plate and rear extension). Gaskets at all flanges simplify installation and eliminate fluid leaks.
• Superior shift-ability through the use of multi-cone synchronizers and hybrid synchronizer rings made of sintered bronze and carbon.

• Noise, vibration and harshness (NVH) minimized with gear layout to best control stress levels.
• All gears supported by caged needle bearings to reduce end play on the gears.
• All gears and shafts made from special grade steel (ASTM 4615) providing increased torque carrying capacity.
• Equipped with a high-performance short-throw billet aluminium shifter that isolates road noise, while providing clean, crisp shifts.
• Robust design with internal three-rail shift system and steel shift forks.
• Wide gear width increases gear life and torque capacity.
• 26-spline input shaft with a 31-spline output shaft for added strength.
• Built-in reverse light switch and cruise control safety switch.
• Separate GM and Ford case patterns and input configurations. Integrated GM and Ford transmission mount patterns.

NEWLY RELEASED

CONVERSION

1 NEW TKX TREMEC 5 SPEED GEARBOX $6390

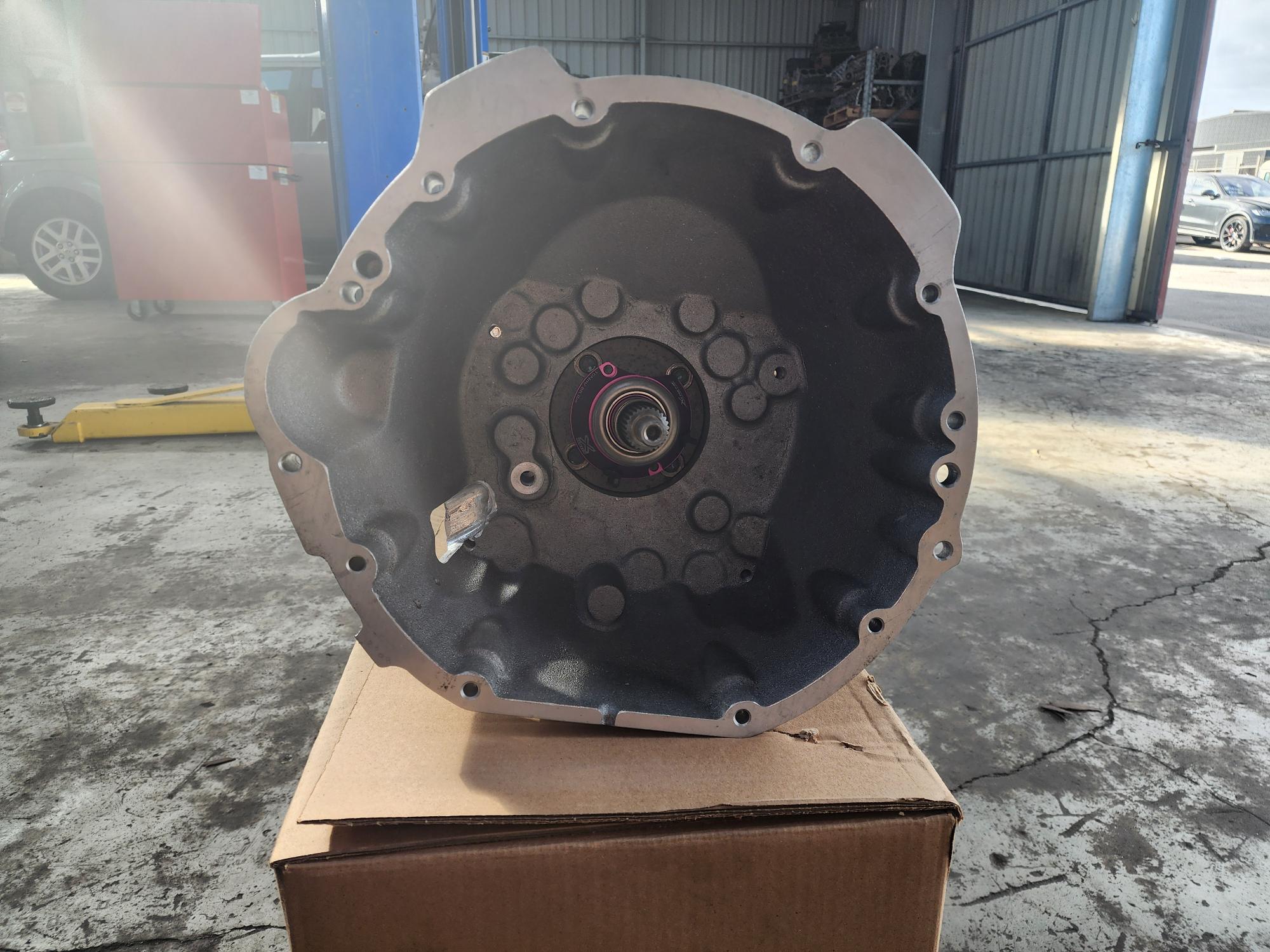

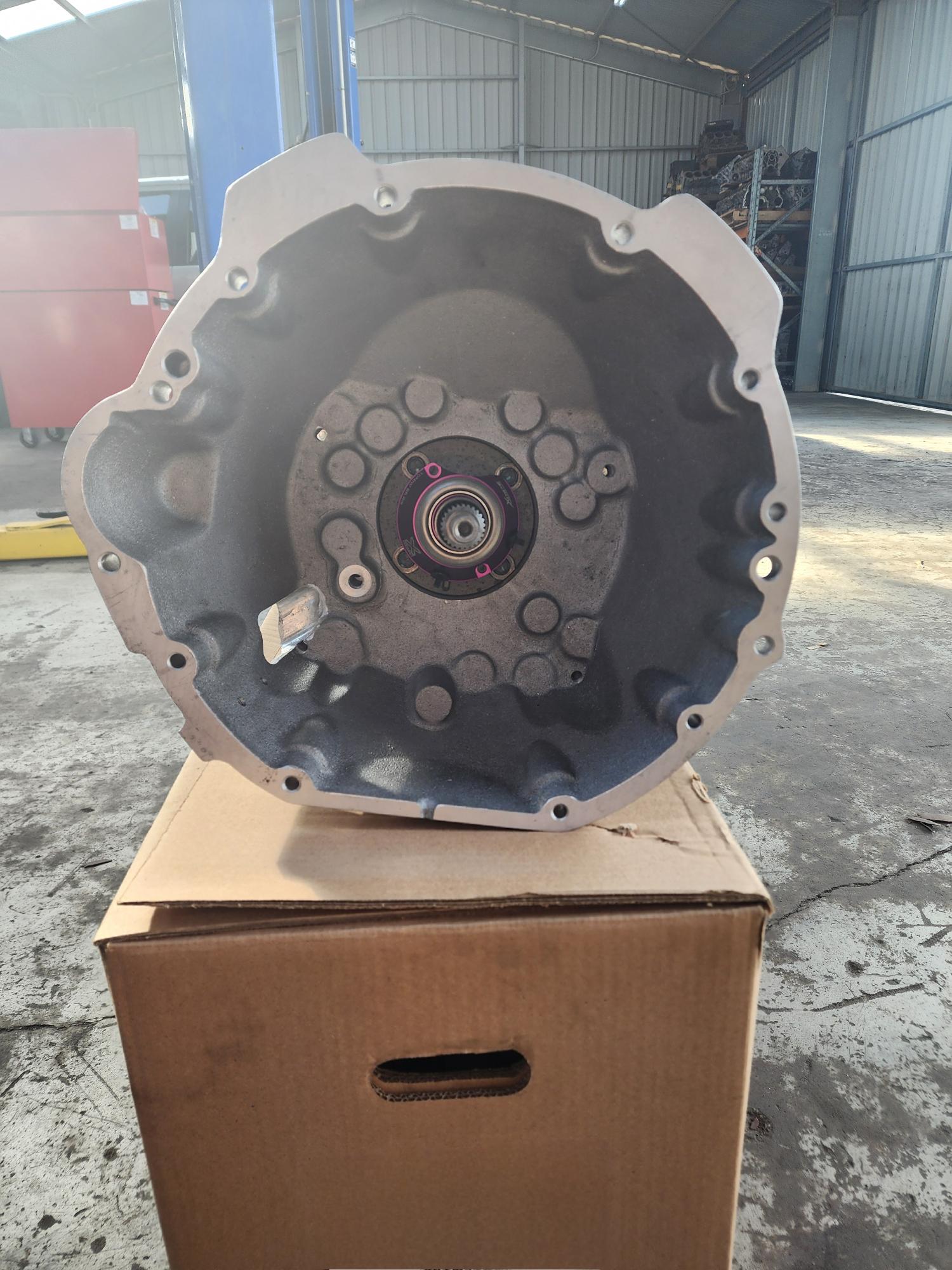

1 NEW BELLHOUSING SUIT TKX $1150

1 NEW HYDRAULIC THRUST CARRIER $495

1 NEW 17MM SPIGGOT $54
